Heating & Annealing Machine

Heating up the material, to anneal the material to remove internal stress or to strengthen the material.

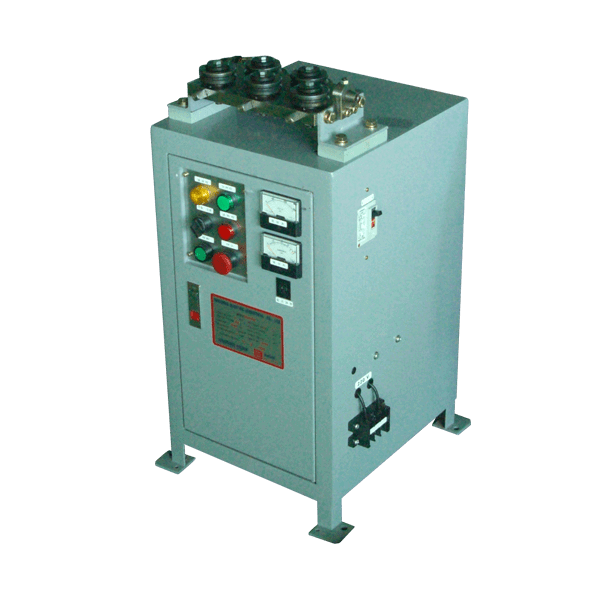

DH-3-5W

DH-5-5W

DH-10-5W

Utilize resistance to heat up or to forge the metal partLearn More

Single Phase ACLearn More

Single Phase AC

3~10kVA Heating Machine

For 3mm to 8mm stainless steel or high tensile material

Specification

Compare

Specification

Capacity	3 kVA	5 kVA	10 kVA
Duty cycle	100%
Input voltage	220V or 380V, 50-60 Hz
Forging force	Spring 20 KG	Spring 30 KG	Spring 30 KG
Secondary current	200A	400A	500A
Conductive platen	S45C
Shaft material	Steel
Cooling system	Air cooling
Heating diameter (SUS Material)	3mm max	5mm max	8mm max
Rollers	3 Rollers

Inquire

Added to cart

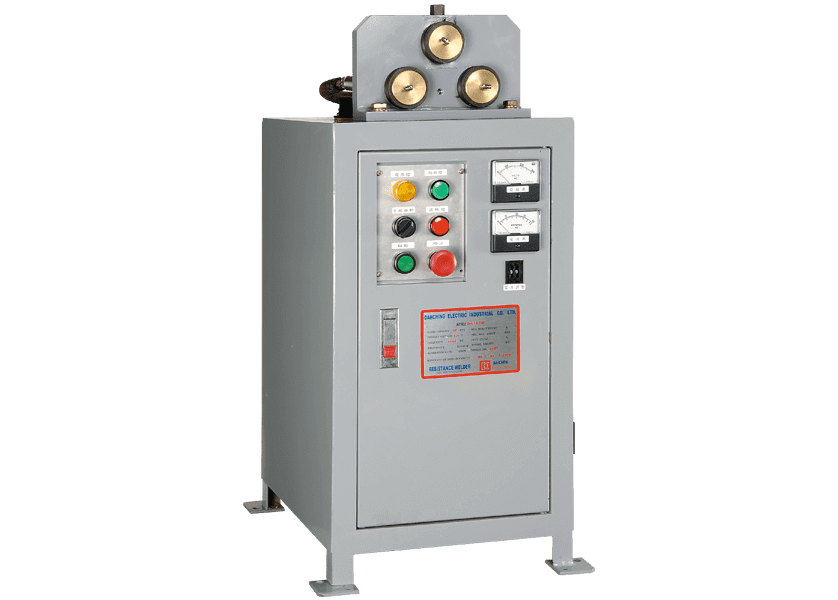

DH-15-3W

DH-30-3W

DH-50-3W

Utilize resistance to heat up or to forge the metal partLearn More

Single Phase ACLearn More

Single Phase AC

15~50kVA Heating Machine

For 6mm to 15mm stainless steel or high tensile material

Specification

Compare

Specification

Capacity	15 kVA	30 kVA	50 kVA
Duty cycle	100%
Input voltage	220V or 380V, 50-60 Hz
Forging force	Spring 50 KG	Spring 80 KG	Spring 80 KG
Secondary current	600A	800A	1000A
Conductive platen	S45C
Shaft material	Brass
Cooling system	Air cooling	Water cooling 4L/Min	Water cooling 4L/Min
Heating diameter (SUS Material)	6~8mm max	9~11mm	12~15mm
Rollers	3 Rollers

Inquire

Added to cart

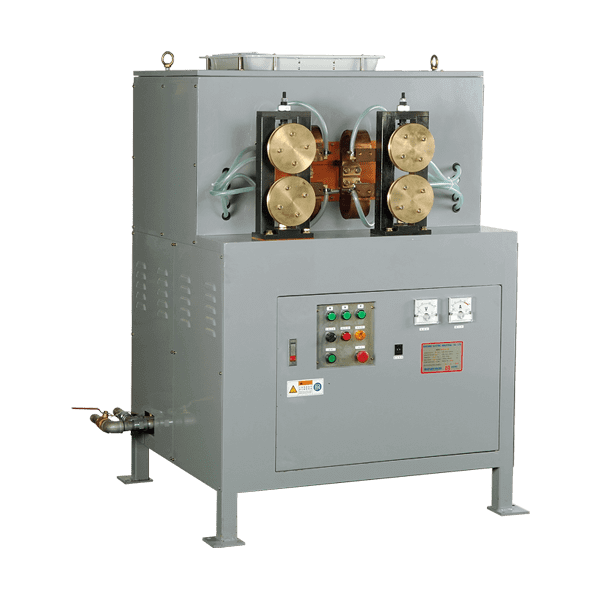

DH-75-4W

DH-100-4W

DH-150-4W

Utilize resistance to heat up or to forge the metal partLearn More

Single Phase ACLearn More

Single Phase AC

75~150kVA Heating Machine

For 12mm to 25mm stainless steel or high tensile material

Specification

Compare

Specification

Capacity	75 kVA	100 kVA	150 kVA
Duty cycle	100%
Input voltage	220V or 380V, 50-60 Hz
Forging force	Spring 100 KG	Spring 150 KG	Spring 250 KG
Secondary current	1200A	1500A	2500A
Conductive platen	S45C	Brass or CRCU	CRCU
Shaft material	Brass	Brass or CRCU	CRCU
Cooling system	Water cooling 10L/Min	Water cooling 15L/Min	Water cooling 20L/Min
Heating diameter (SUS Material)	16-18mm	16-20mm	20-25mm
Rollers	4 Rollers

Inquire

Added to cart

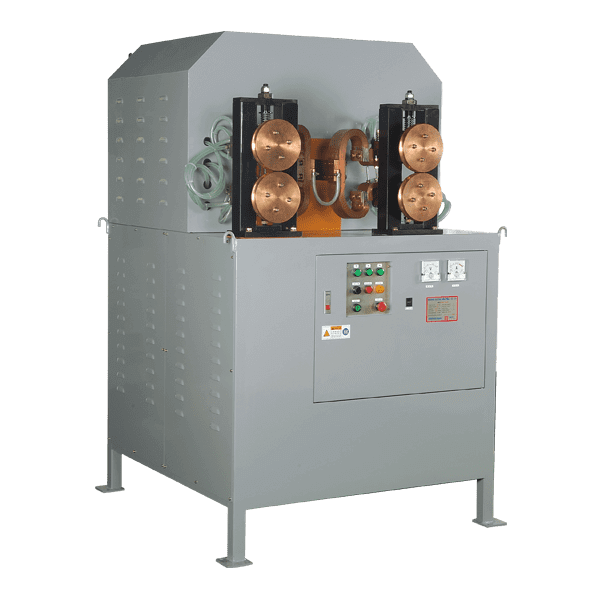

DSDH-50-4W

DSDH-75-4W

DSDH-150-4W

Utilize resistance to heat up or to forge the metal partLearn More

Three Phase Rectifier-DC PowerLearn More

Three Phase Rectified DC

50~150kVA Heating Machine

For 12mm to 28mm stainless steel or high tensile material
Three Phase Rectified DC for high duty cycle applications

Specification

Compare

Specification

Capacity	50 kVA	75 kVA	150 kVA
Duty cycle	100%
Input voltage	220V or 380V, 50-60 Hz
Forging force	Spring move-ment 100kg	Spring move-ment 150kg	Spring move-ment 250kg
Secondary current	1200A DC	1500A DC	2500A DC
Conductive platen	Brass	Brass	CRCU
Shaft material	Brass	Brass	CRCU
Cooling system	Water cooling10L/Min	Water cooling 15L/Min	Water cooling 20L/Min
Heating diameter mmSUS Material	12-15mm	16-20mm	20~28mm
Rollers	4 Rollers
